Industrial PT100 Digital Pid temperature process controllers from China supplier

FOB Reference Price:Get Latest Price
$23.00 - $43.00 / Piece | 1 Piece/Pieces (Min. Order)
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.3%fs
Temperature range:
-9999~+9999
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Yudian
Model Number:
AI-218BG
Product name:
Industrial PT100 Digital Pid temperature process controllers
Control Model:
On-off , PID Control
Power supply:
100~240 VAC, 50~60Hz, or 24VDC
Display:
4 digits
Input:
thermocouple, RTD,
Output:
relay
Size:
160*80
Ambient temperature:
-10℃~+60℃, 0~90 RH%
Power Consumption:
≤5W
Functions:
control, alarm, retransmission,
Supply Ability
Supply Ability:
600000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Standard Export Carton with Yudian logo
Port
Xiamen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Video Description
Product Description

paste-pic-dp_uuid_d0tprProduct Details1

218



218

Main Features
  • Designed specially for plastic machinery, food process machinery, packaging machinery and so on.
  • Universal power supply 100~240VAC. 50/60Hz. CF selectable.
  • Freely choose input and output types, modularized, prompt delivery, best service after sale.
  • Armed with AT and AI PID Intelligent control algorithm function.
  • Burnt-proof design results in lower powerconsumption, higher reliability and stability. Its power and I/O terminals pass 4KV/5Hz pulse crash proof experiment.
  • Qualified with ISO9001, CE and CQC, satisfying European ROHS standard

Applications
   •  Plastic Processing Machinery
   •  Packaging Machinery
   •  Furnace & Boilers
   •  Laboratory Testing Machinery
   •  Ovens & Incubators
   •  Food Industry
   •  Extrusion Machinery: Plastic/Rubber

Technical Specifications3

207 208 218 key point



Power Input 100-240VDC, -15%, +10%/50-60Hz;  or 24 VDC/AC, -15%, +10%.
Input type

Thermocouple: K (-100~1300℃), E (0~1000℃), J (0~1200℃), N (0~1300℃)



Resistance temperature detector: Pt100





Control Outputs

relay 250VAC/2A or 30 VDC/1A





ssr driver - 12VDC/30mA





Alarm Outputs

1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A



1 channel relay(small volume) 30VDC/1A, 250VAC/1A



2 channels relay: 30VDC/2A, 250VAC/2A



Power consumption≤ 5W
Operating AmbientTemperature -10~60℃; Humidity ≤90%RH
Front Panel size96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm

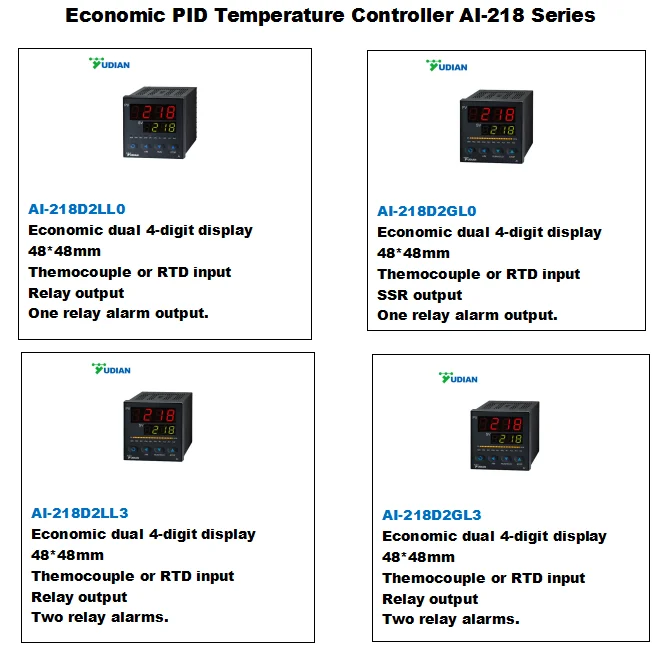

Model Solutions

Module Example









Packaging & Shipping

paste-pic-dp_uuid_tr8rv

Company Profile
Other products
FAQ
1. How to Get in Contact with Us?
Option OneRegister on Alibaba and leave us a message or talk to us on Trading Manager at the BOTTOM of this page
2. Could I get sample of thermocouple controllers?

Yes,we have products in stock ,so you can get the samples quickly.

3. How about the quality of thermocouple controllers?

We have certificate of ISO, CE and ROHS, we could send the testing report to you if needed.
4. Could I visit your factory?
Of course, we warmly welcome you to visit our factory.
5. If we have paid, when will you ship the products?
Delivery will be within 3 working days after payment confirmed.
