4-20ma data logger

FOB Reference Price:Get Latest Price
$89.00 - $145.00 / Unit | 1 Unit/Units (Min. Order)
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.25%FS
Temperature range:
-9999~+9999
Lead Time:
Quantity(Units) 1 - 1000 >1000
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Yudian
Model Number:
AI-3704
Product name:
4-20ma data logger
Control Model:
On-off , PID Control
Power supply:
100~240 VAC, 50~60Hz, or 24VDC
Functions:
control, alarm, retransmission, communication
Measurement Accuracy:
0.25% FS ± 1℃
Input:
thermocouple, RTD, 4-20mA or 5V/10V
Output:
SSR, relay, SCR or 4-20mA
Size:
7 inch
Ambient temperature:
-10℃~+60℃, 0~90 RH%
Power Consumption:
≤5W
Supply Ability
Supply Ability:
600000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard Export Carton with Yudian logo
Port
Xiamen
Lead Time :
Quantity(Units) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated
Video Description
company profile

paste-pic-dp_uuid_d0tprProduct Details1

+

Main specification

1. Dimensions
Screen diagonal: 7 inches
Enclosure front (W*H*D)203 W*150 H*40 D mm
Mounting cutout192 W*139 H mm
2. Display
ColorTFT true color
Resolution (W*H)800*480 pixels
BacklightLong- lifespan LED
Operation methodTouch Screen
3. Memory
Usable memory for application data150 MB
Recording intervalinterval with unit one second (1,2, 3 or 4 etc)
4. Communication
Interface typeRS232, RS485, Ethernet interface10 / 100M adaptive Ethernet interface)
Baud rate1200-19200 bps
5. General Parameters
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;
4KV according to IEC61000-4-5.
Isolation withstanding voltage:
Between power, relay contact or signal terminals≥2300VDC;
between isolated Electroweak signal terminals≥600VDC
Power supply100~240VAC,-15%~ +10%, 50-60Hz
Power consumption≤5W
Technical Specifications3

Yudian touch screen instrument include integrated and split type.



1. AI-3170S/3170W/3190S/3190W split-type paperless recorder

2. AI-3756/3756P/3759/3759P/3956/3956P/3959/3959P series single channel artificial intelligence temperature controller/industrial regulator

3. AI-37028/37048/39028/39048 multi-channel touch screen artificial intelligence temperature controller/industrial regulator

4. AI-3702M/3704M/3906M/3902M/3904M/3906M multi-channel touch screen inicator



Model defination Guide For multi channel recorder



For controllers

1. If input channels less than 4, integrated type is recommended, such as AI-37028/37048/39028/39048.

2. If input channel more than 4 channel, split type is advised.  Which means recorder consist of one piece touch screen and several units of controllers.



For indicators

1. If input channels less than 6, integrated type is recommended. Such as AI-3702M/3704M/3906M/3902M/3904M/3906M.

2. If input channel more than 6, split type is advised.  Which means recorder consist of one piece touch screen and several units of indicators.

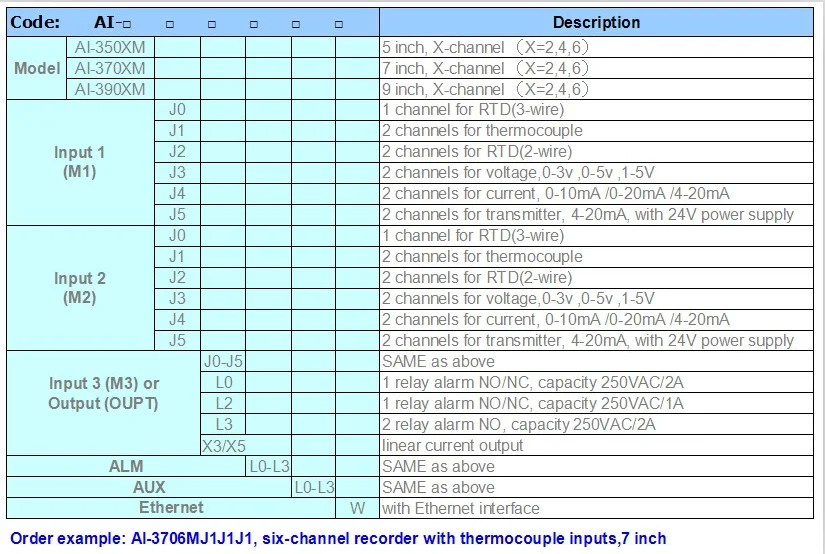

AI- Instruction
Model3702M7 inch, 0.2%FS, 2 channel inputs, with function of Alarm, Communication, recording.
3704M7 inch, 0.2%FS, 4 channel inputs, with function of Alarm, Communication, recording.
3706M7 inch, 0.2%FS, 6 channel inputs, with function of Alarm, Communication, recording.
3902M9 inch, 0.2%FS, 2 channel inputs, with function of Alarm, Communication, recording.
3904M9 inch, 0.2%FS, 4 channel inputs, with function of Alarm, Communication, recording.
3906M96 inch, 0.2%FS, 6 channel inputs, with function of Alarm, Communication, recording.
Input 1J0-J5one channel 3-wire RTD (one channel thermocouple + one channel 2-wire RTD)
J1two channel thermocouple, also support MV input
J2two channel RTD
J3two channel voltage input, 0~3V, 0~5V, 1~5V, etc
J4two channel current input, 0~10mA, 4-20mA, 0~20mA, ETC.
J5two channel transmitter input, can support 24VDC/20mA power supply for transmitter
Input 2J0-J5, the same as Input 1
Input 3J0-J5the same as Input 1
L0one channel relay output, 250VAC/2A
L2one channel relay output, 250VAC/1A
L3two channel relay output 250VAC/2A
GSSR DC12V/30mA
X3/X5

Linear current output 4-20mA

X5 is equiped with isolated power supply.

AlarmL0-L3the same as Input 3
Auxiliary AlarmL0-L3the same as Input 3
InternetWwith inthernet interface
