YUDIAN AI-7048 DIN Rail Multi Four Channel Temperature Controller

FOB Reference Price:Get Latest Price
$70.20 - $130.00 / Unit | 1 Unit/Units (Min. Order)
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.2%FS±0.01°C
Temperature range:
0~9999
Lead Time:
Quantity(Units) 1 - 100000 >100000
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
YUDIAN
Model Number:
AI-7048
Output:
SSR voltage, 12VDC/20mA each channel
Color:
Grey or Black
Operating Ambient:
-10℃ to 60℃ ; ≤90%RH
Power supply:
100-240VAC/ 50Hz; 120-240VDC
Input Type:
Thermocouple, RTD
Temperature Display Resolution:
1 or 0.1 or 0.01
Alarm Function:
High Alarm, Lower limit alarm, Deviation High Alarm
Power Supply Voltage Rating:
100-240VAC, -15%, +10% / 50-60Hz
Control period:
0.48 sec/2 channels
Name:
YUDIAN AI-7048 DIN Rail Multi Four Channel Temperature Controller
Supply Ability
Supply Ability:
500000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard Carton boxes with Yudian logo for AI-7048 DIN Rail Multi Four Channel Temperature Controller
Port
XIAMEN port
Lead Time :
Quantity(Units) 1 - 100000 >100000
Est. Time(days) 3 To be negotiated
Video Description

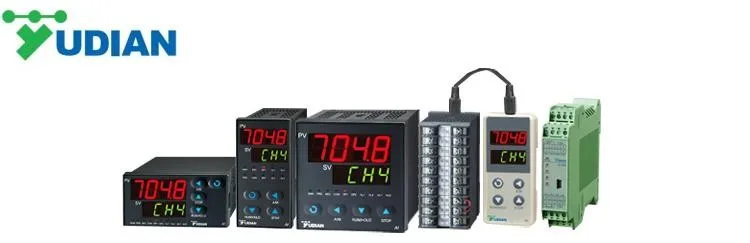

YUDIAN AI-7048 DIN Rail Multi Four Channel Temperature Controller




Product Description

.JPG





PRODUCT DESCRIPTION



Main Features for AI-7048 DIN Rail Four Channel Temperature Controller

  • Providing up to four channels of configurable inputs, and supporting multiple thermocouple inputs with auto reference junction compensation and linear voltage (mV) inputs with user defined scale. Every channel has its own digital filtering and can adjust its filtering degree.
  • High performance hardware design, which greatly decreased temperature drift and the interference among the four channels. Therefore, this multi-channel instrument obtains the same measurement accuracy and anti-interference ability as that of single channel instrument.
  • Every channel has independent high/low alarms, and the alarms can be allocated to different alarm outputs or to the same alarm output (Just available for Dimension E5).
  • Friendly and customized operating interface leads to easy learning and simple manipulation. Up to 12 parameters can be promoted to immediate operator access in Field Parameter Table.
  • Advanced communication functions, compatible with the communication protocol of other AI series instruments. One AI-7048 communicates with the host computer the same as four independent controllers.
  • Universal power supply of 100-240VAC or 24VDC.
  • New generation D5/E5 rail mounted dimension. The width of D5 is only 22.5mm. The instrument can be easily configured by connecting to handset display.
  • ISO9001 and CE certified and satisfied with EMC standard, achieving world class level of quality, anti-interference ability and safety. The power and all I/O terminals passed 4KV/5KHz EFT test, and the instrument can work stably under interference.



Dimension for AI-7048 DIN Rail Multi Channel Temperature Controller



SizeFront Panel (W*H)Cut Out (W*H)Depth Behind Mounting Surface
A96*96mm92*92mm

100mm

B160*80mm 152*76mm 100mm
C80*160mm152*76mm100mm
E48*96mm45*92mm100mm
F96*48mm92*45mm100mm
E548*96mmRail mounted110mm












Packaging & Shipping

You will get:

  1. A piece of temperature controller;
  2. A paper of user manual;
  3. One 5-year warranty card and Quality Approval card;
  4. A lable of units;
  5. A pair of installaton brackets;
  6. Nice package carton box with Yudian logo.
