Yudian AI-516 constant pressure controller

FOB Reference Price:Get Latest Price
$28.00 - $49.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
YUDIAN
Model Number:
AI-516
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
03%FS±0.01°C
Temperature range:
0~9999
OUTPUT:
RELAY or SSR or Traic or Analog signal
Color:
Grey or Black
Operating Ambient:
-10℃ to 60℃ ; ≤90%RH
Power supply:
100-240VAC/ 50Hz; 120-240VDC
Supply Ability
Supply Ability:
9999 Unit/Units per Day
Packaging & Delivery
Packaging Details
Standard Carton boxes with Yudian logo
Port
XIAMEN port
Lead Time :
3-5 DAYS

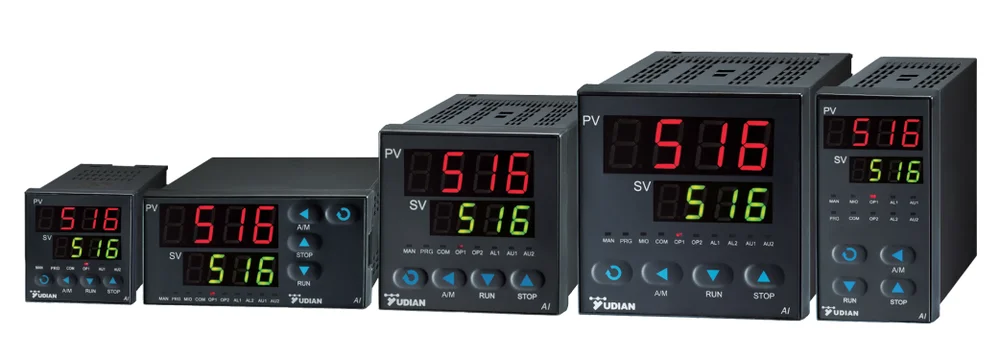

Yudian AI-516 constant pressure controller

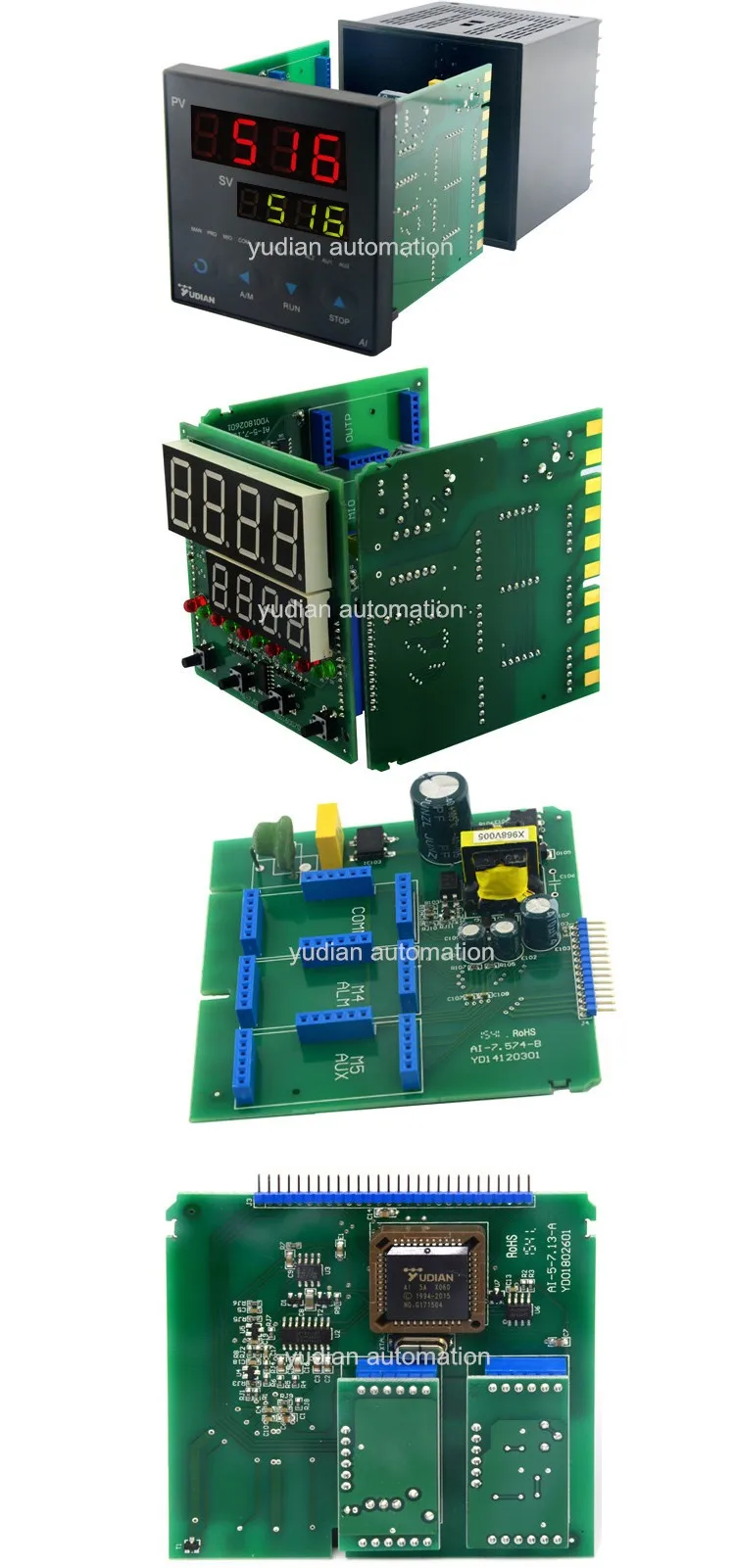

DETAILED IMAGES.jpg







             Yudian AI-516 analog output PID temperature controller Technical Specification:

516 details_plus .jpg



PRODUCT DESCRIPTION.jpg

___________________________________________________________________________



   I. Technical Specification:



1. Input type : Thermocouple: K,T, E, J, N

                         Resistance temperature detector: Pt100

2. Instrument Input range :

K, E, J, N :0~+999°C;  Pt100: 0~+800°C

3. Measurement accuracy : 0.3%FS±1°C

4. Temperature display resolution : 1 or 0.1 or 0.01

5. Control mode:

On-off control mode , or PID control with the function of parameter auto tuning.

6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.

7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz.

8. Power consumption: ≤2W.

9. Ambient temperature: -10~+60°C, Humidity: 0~90RH%

___________________________________________________________________________

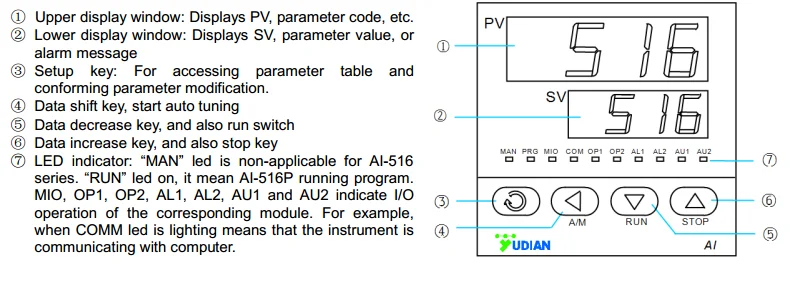

   II. Front panel and Operation:







___________________________________________________________________________



   III. Model Code:



The ordering code of AI-516/AI-516P (V8.2) series instrument is made up of 9 parts. For example:

                             AI-516     A    N    X3    L5    N    S4
                                  1        2     3     4      5     6     7

  Part 1: AI-516 PID controller

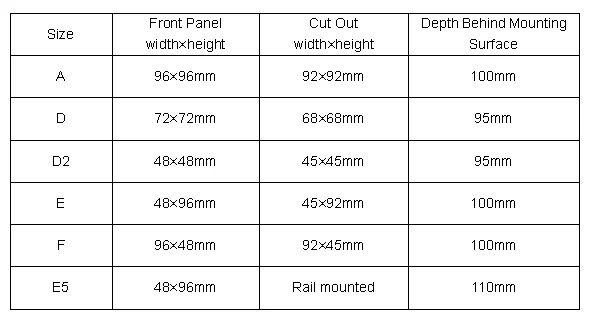

  Part 2: Dimension



    Part 3: Input Type

            N: no module inseted, support  K,T, E, J, N, PT100

            I4: support 0-20mA/4-20mA analog input



    Part 4: Main Output Type

            L1: RELAY output

            G: SSR output

            X3: 4-20mA output

            K1/K3: single/ triple zero crossing trigger output

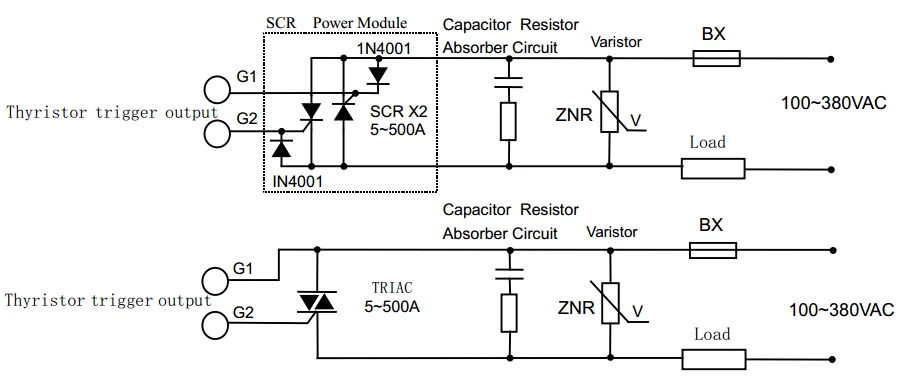

            K5/K6: single phase- shifting trigger output 220VAC / 380VAC



    Part 5: Alarm

            N: no alarm

            L0: 1 alarm

            L3: 2 alarm



    Part 6:  Auxillary alarm/ Tansmitter output

            N: no alarm

            L0: 1 alarm

            L3: 2 alarm

            X3: 4-20mA transmitter output



    Part 7:  COMM

            S: RS485 communication

___________________________________________________________________________



   IV. AI-508 digital temperature controller Installation and wiring:

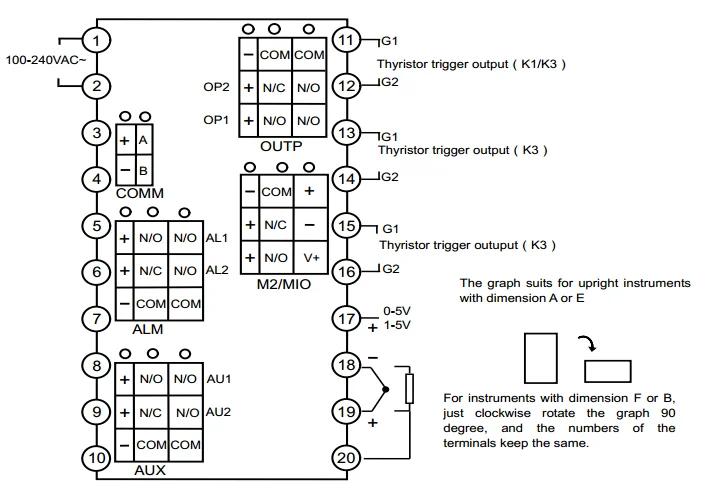

                                   ( Wiring graph for A,E,F size )

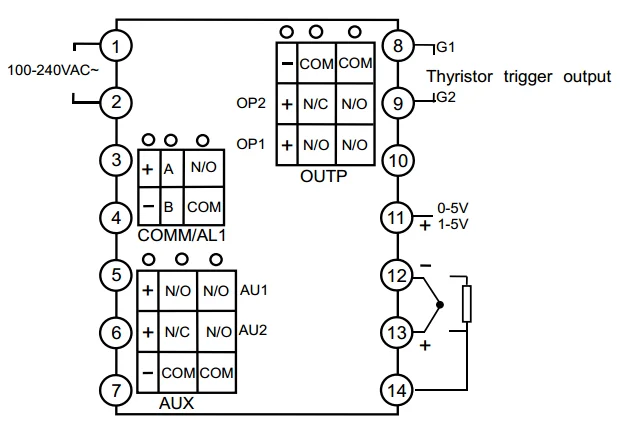

                                   ( Wiring graph for D size )

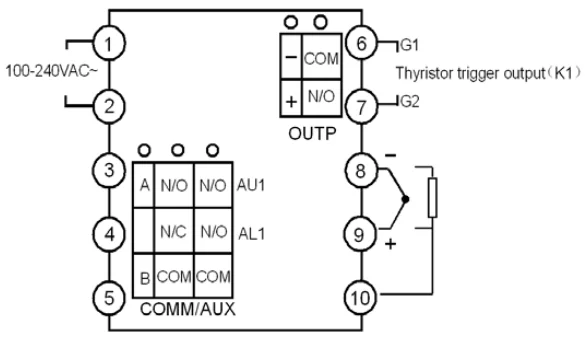

                                  ( Wiring graph for D2 size )









___________________________________________________________________________
