program pressure monitor regulator

FOB Reference Price:Get Latest Price
$50.00 - $105.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Yudian
Model Number:
AI-708P
color:
black gray
size:
96*96,160*80, 80*160, 72*72, 48*96
accuracy:
0.1%FS
warranty period:
10years
theory:
pressure monitor
feature:
Add 30+20 segment program control to AI-708
speciality:
can be rail mounted installed
Supply Ability
Supply Ability:
60000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
standard export carton
Port
Xiamen
Lead Time :
Shipped in 3 days after payment confirmed
Video Description



__-02_-03

111201



AI-708P hot Temperature level measurement and controller program pressure monitor regulator

Features:
1. High control accuracy at the maximum of ± 0.1oC;
2. Double PID control functions, capable of controlling heating and cooling;
3. Programmable input, capable of selecting 56 kinds of different input information;
4. A variety of output modes to greatly meet many requirements for load control;
5. Capable of selecting PV (measurement value) or SV (set value) 4-20mA transmission output functions;
6. Capable of selecting external remote control set value functions, which can be used for multiple unit synchronous setup;
7. Output percentage restriction function and manual/automatic non-disturbance switching;
8. Automatic diagnosis function, capable of displaying information on any failures;
9. RS485 communication is available.



Specification

Input

Sensing signal input. Sampling time: 500ms, display accuracy: 0.2% of  FS

Thermocouples: K, J, R, S, B, E, N, T, W, U, L

Thermal Resistance: Pt100, Pt 50

Linear signals: 4-20mA, 0-20mA, 1-5V, 0-5V

Output

Relay contact:3A/220V, electric life: 100,000 times or more (under rated load), operation cycle 15 seconds

Pulse voltage: drive SSR, DC0/24V,ON: 24V, OFF: 0V. Operation cycle 1 second

Linear signals: 4-20mA, 0-5V, 0-20mA, 0-10V, 1-5V various standard signal output

Portion motor control output: control 3-line portion motor making it on or off, capable of displaying its openness of valves

SCR zero position trigger signals: direct trigger SCR for single-phase or 3-phase, zero position control

SCR phase trigger signals: direct trigger SCR for single-phase or 3-phase control

Control

Control mode: PID, ON/OFF, Phase PID, continuous PID, self-regulated PID, fuzzy PID, location portion control

Set range: percentage band P:0-200.0%, integral time I: 0-3600 seconds, differential timeD: 0-900 seconds

Accuracy

Control accuracy: ±1 o C

Measurement accuracy: ±0.5%FS (±0.2% which can be provided)

Resolution:14BIT

Sampling cycle: 0.5 s

General specifications

Power voltage: support AC85-265V,50/60Hz,DC24V

Operating ambience: -10~50,30~90%RH

Consumed power: 10VA

Weight: 0.3kg or less

Insulation: insulating resistance >20MΩ(500VDC), intensity 1500VAC/1 minute

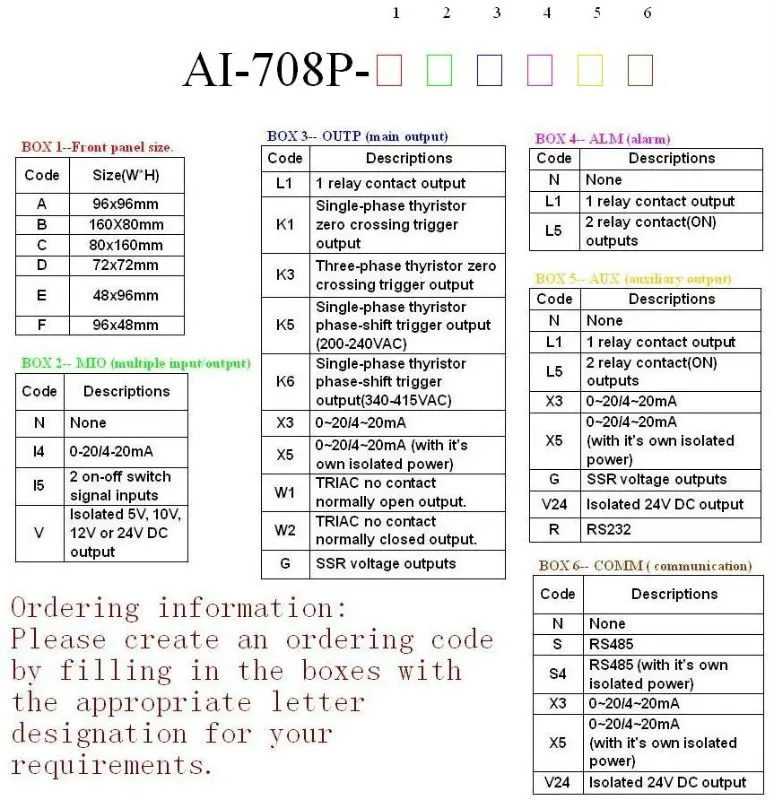

Ordering code:

AI-708P ordering code.JPG
