Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Yudian
Model Number:
AI-708H
Color:
Gray
Panel:
LED OR LCD
Frequency units:
Hz
Measurement accuracy:
±0.2% FS
Temperature drift:
≤0.01%FS /℃ (typical value is 50ppm/℃ )
Principle:
total station survey
Input type:
frequency, 0-5V, 4-20mA
output:
relay
alarm:
1-2 channels relay output
communication:
RS 485
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
STANDARD EXPORT CARTON
Port
XIAMEN
Lead Time :
IN 3 WORKING DAYS AFTER ORDER CONFIRMATION
Video Description

111201

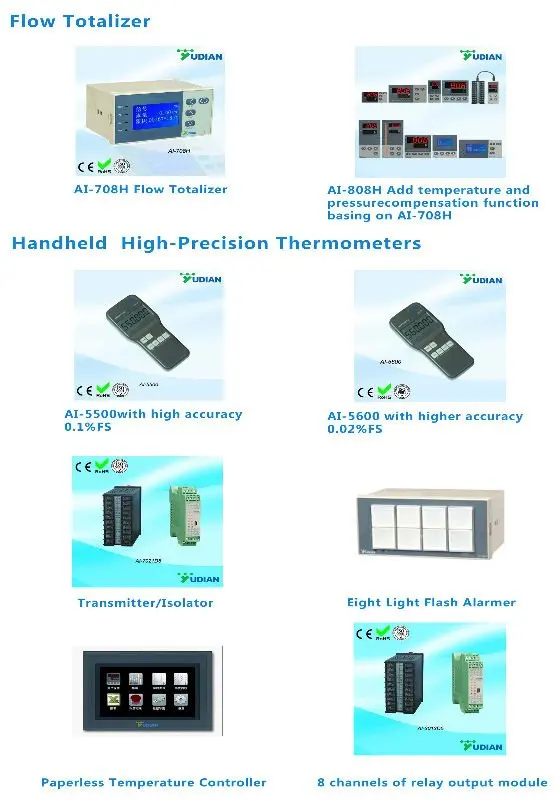

AI-708H FLOW TOTALIZER total station survey



Main Features
- Modularized structure and hardware compatible with other AI series instruments and
modules, which make it easy to maintain and quick delivered.

- Modularized and configurable inputs. The flow input can be 1-5V, 0-5V, 4-20mA or
frequency signal, and special user defined input specification is also available. The
temperature input can be configured to Pt100 RTD, K, E, J type thermocouple,
voltage, or current signal. The pressure input can be various voltage or current
signal.
- Abundant functions such as retransmission, high/low alarm of momentary flow,
temperature and pressure, abnormal signal detecting, and communication with
computer are available.
- Square root/no square root selectable ,8-digits accumulation value and 4-digits
momentary process value, small signal cut-out can be set at any range.
- It has perfect temperature and pressure compensation used for general gas,
saturated steam, overheat steam and liquid. The compensation calculation with the
method of table look-up has a high accuracy in the steam measurement application.
Special function can be carried out by enhancing the compensation formula upon
customers' demand.
- As used as batch controller, it has 4-bit accumulator for control and 12-bit
accumulator for total sum individually.
- With high precision current module installed, the totalizer can provide retransmission
with 14 bit output resolution and 0.2%FS output precision.



Specification:



ModuleModule DescriptionsM1M2OUTPALMAUXCOMM
Nno module installed
I0

Temperature input is thermocouple, RTD or mV signal input;

pressure or flow input is 0-5V or 1-5V voltage signal


J42 channel current inputs of 0-12mA, 4-20mA, 0-20mA etc.
J52 channel two-wire transmitter provided 24VDC power supply.
I2

Switch / frequency signal input interface for inputting external switch or

frequency signal, has a 12VDC power supply for external transducer.


I3

Single 0-5V/1-5V voltage signal input, with 24V/50mA power

supply for external transducer


I4

0-20/4-20 mA analogue input interface, providing a 24VDC/24mA

power supply for a two-wire transmitter



V5/V10/

V12/V24

Isolated 5V, 10V, 12V or 24V DC output with maximum current 50mA.

(use instrument’s internal 24V isolated power)

L1

1 relay contact output (Capacity: 2A/250VAC,

normal open terminal can absorb spark)


L21 relay contact (NO+NC) output. (small volume, 30VDC/1A, 250VAC/1A)
L41 relay contact (NO+NC) output. (small volume, 30VDC/2A, 250VAC/2A)
L52 relay contact(ON) outputs.(30VDC/1A,264C/1A)
W1TRIAC no contact normal open output. (100~240VAC/0.2A)
W2TRIAC no contact normal closed output. (100~240VAC/0.2A)
GSSR voltage outputs (12VDC/30mA)
X3

0~20/4~20mA linear current output module.

 (Use internal 12VDV power of the instrument)


X5

0~20/4~20mA linear current output module.

(With its own isolated power)


S

Photoelectric isolated RS485 communication module

(use instrument’s internal 12V isolated power)


S4

Photoelectric isolated RS485 communication module with its own

 photoelectric isolated power


R

RS232 communication interface (use instrument’s internal

12V isolated power)





Ordering code:

AI-708H ordering code
